Unit 66 Modular Facade

All about the product

Description

Specifications

Available on backorder

All specifications

Description

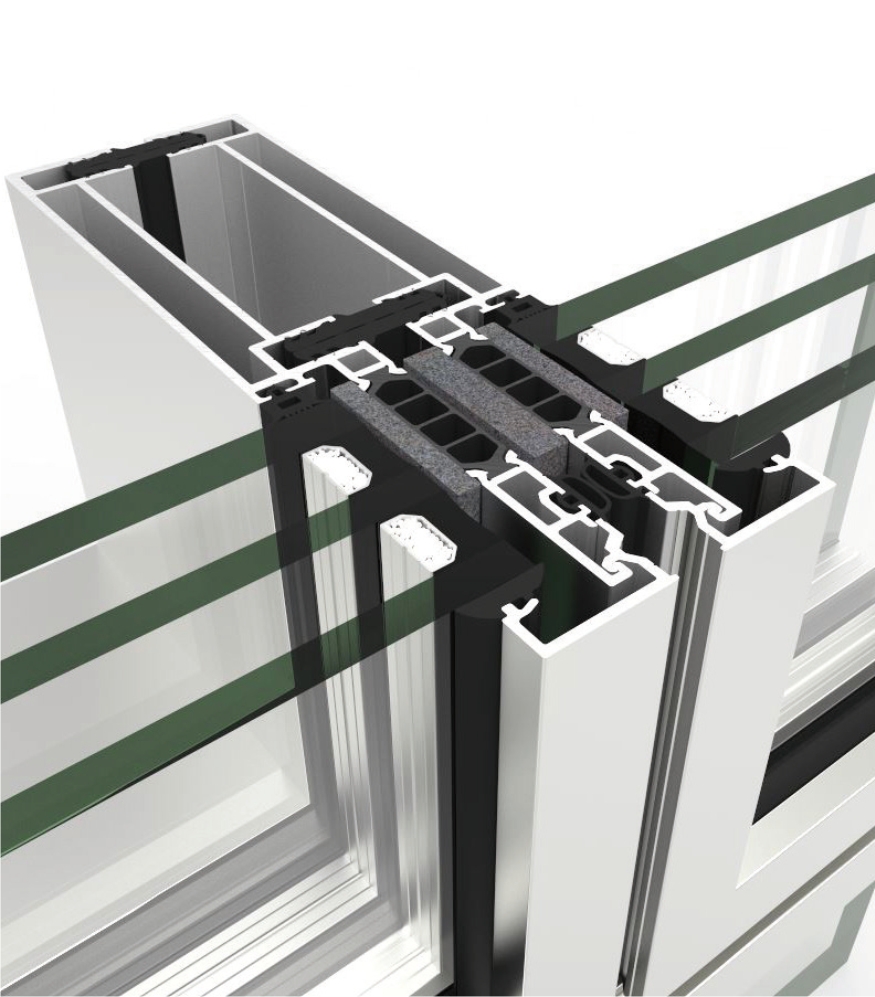

Thermally broken Facade system suitable for high rise enclosure projects. This solution combines excellent performance with a wide range of custom designs, offering great aesthetic versatility with option of glass only or seen profile with an interlock profile of 66 mm. Its fixing bracket has three-dimensional regulation, facilitating its installation.

Specifications

» Glazing
58 mm

» Opening possibilities

Outward opening
Hidden top hung
Hidden parallel opening

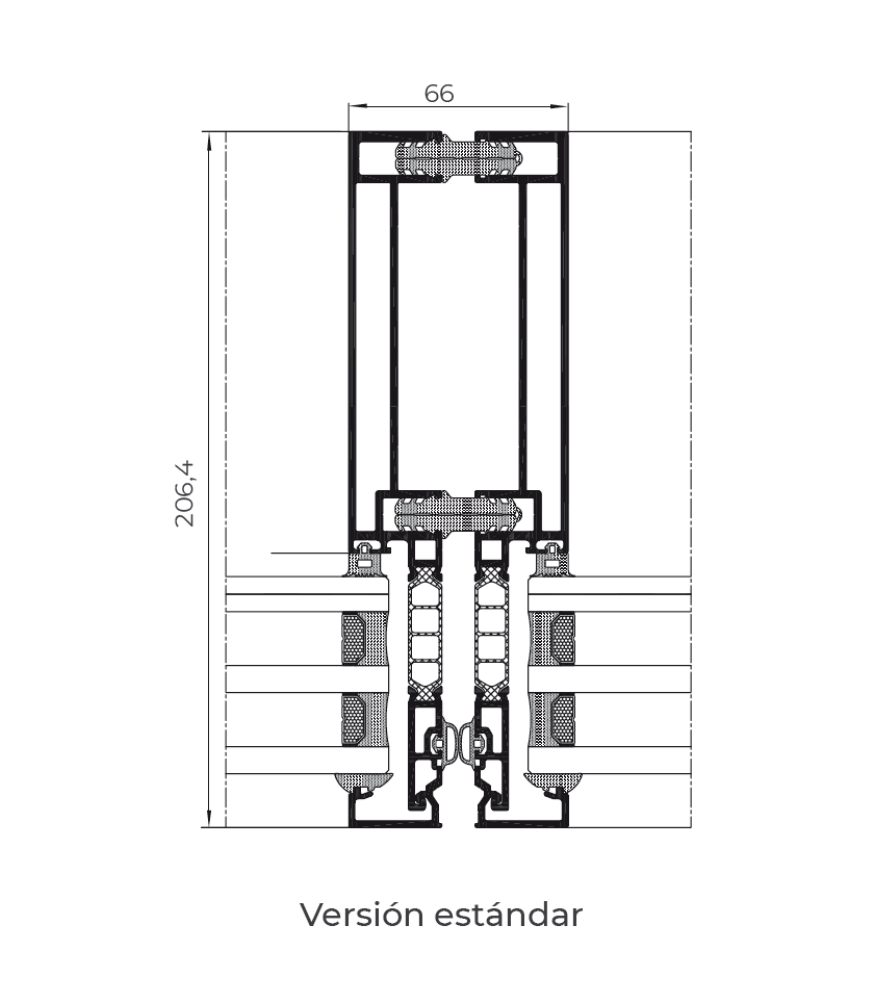

» Interlock profile
66 mm or 76 mm

» Thermal break zone
25 mm – 40 mm

» Separation between modules
10 or 20 mm

» Maximum dimensions
Width (L) 1500 mm
Height (H) 3700 mm

» Maximum weight
350 kg

Consult maximum weight and dimensions according to typologies

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
