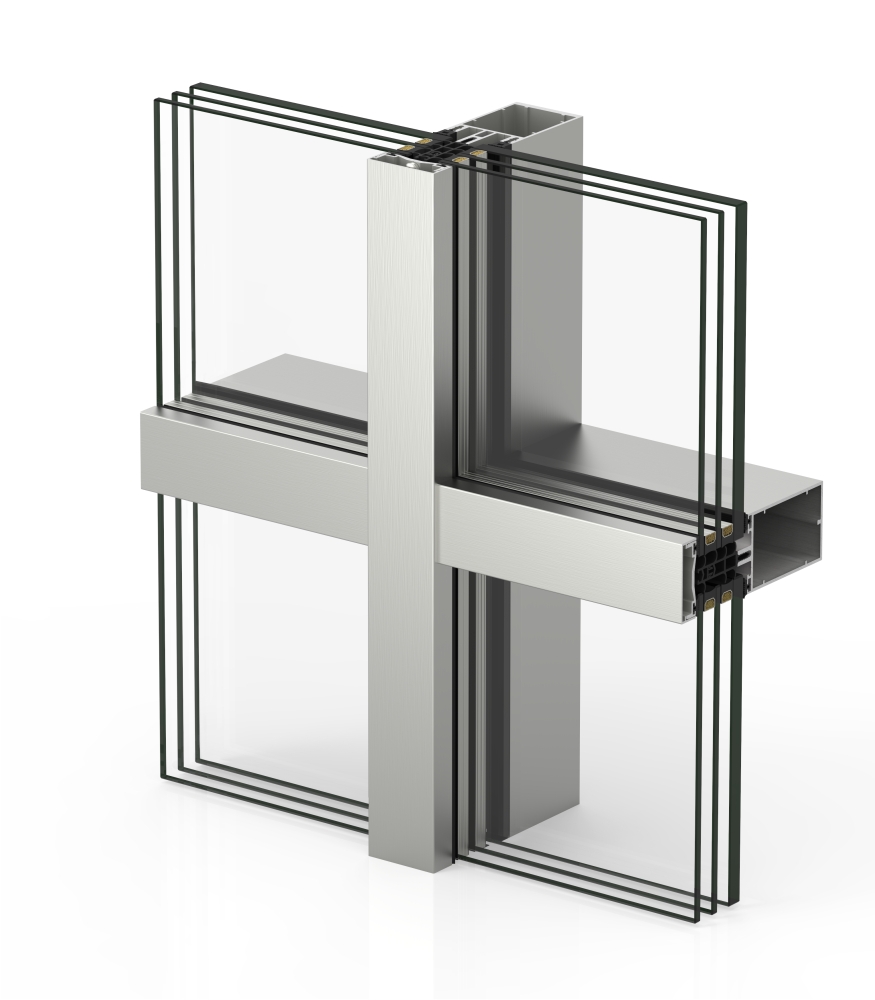

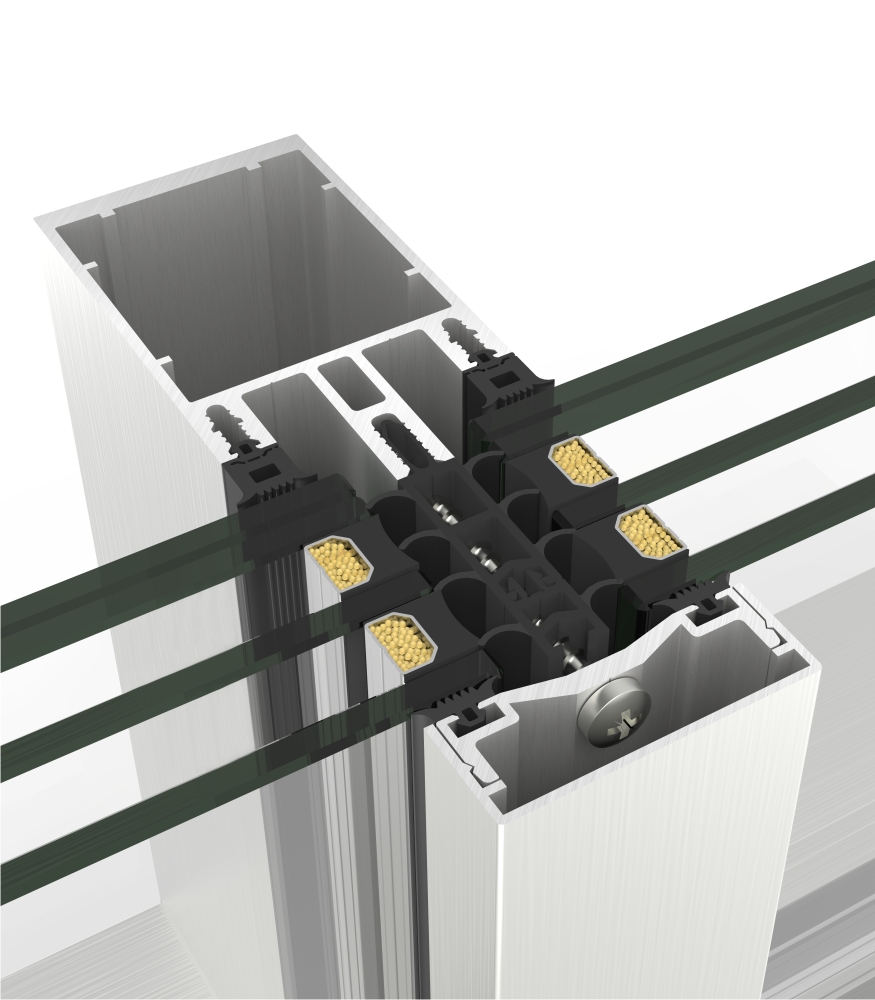

TP 52 Facade

» Glazing

Maximum glazing 64 mm

M?nimum glazing 4 mm

*Consult us for greater thicknesses

» Opening possibilities

Hidden turn&tilt

Hidden side hung

hidden top hung projecting

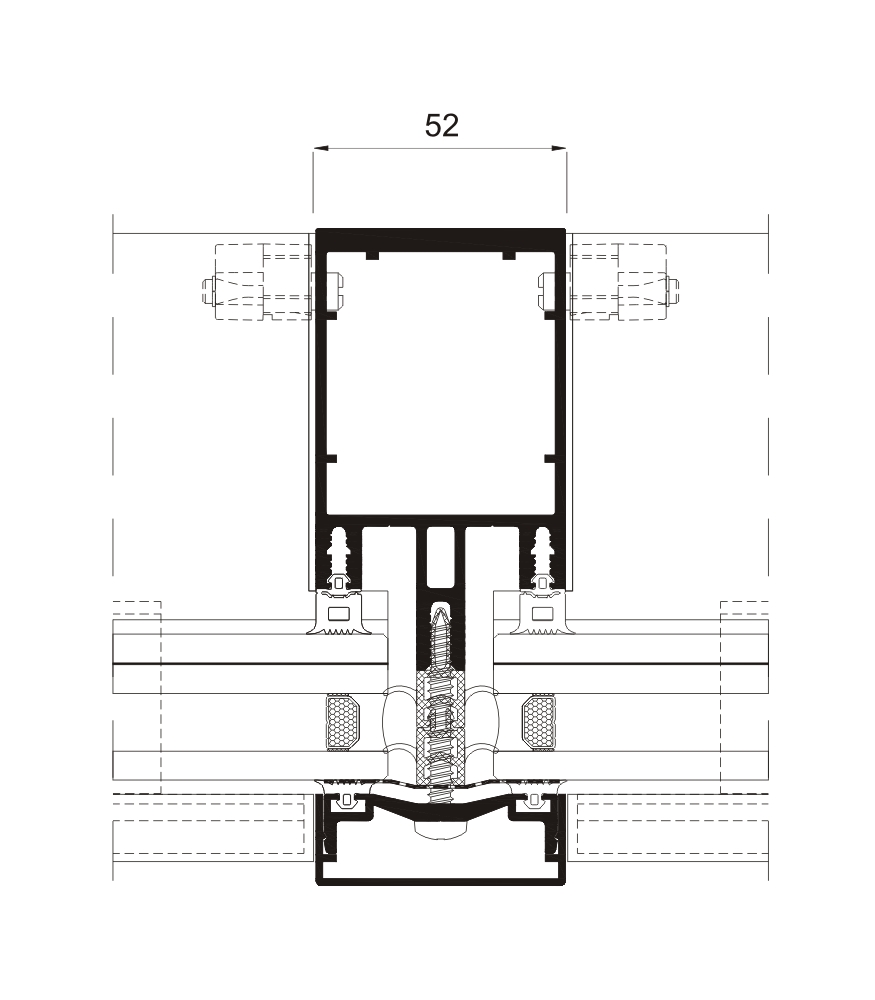

» Sections

Mullion 52 mm

Transom 52 mm

» Profile thickness

Mullion 2.1 and 3 mm

Transom 2.1 mm

» Polyamide strip length

6, 12 & 30 mm stackable profiles

» Minimum / Maximum opening dimensions

Hidden Top hung

Min. Width (L) = 500 mm

Min. Height (H) = 650 mm

Max. Width (L) = 2500 mm

Max. Height (H) = 2500 mm

Hidden Parallel Projecting

Min. Width (L) = 530 mm

Min. Height (H) = 530 mm

Max. Width (L) = 2000 mm

Min. Height (H) = 3000 mm

Hidden Side Hung / Turn&Tilt

Min. Width (L) = 500 mm

Min. Height (H) = 600 mm

Max. Width (L) = 1400 mm

Min. Height (H) = 1900 mm

» Maximum weight / sash

Hidden Top hung 180 kg

Hidden Parallel Projecting 200 kg

Hidden Side Hung / Turn&Tilt 100 kg

» Maximum weight of fixed lights

750 kg

Consult maximum weight and dimensions according to typologies

» Covers

85 mm deep elliptical cover

H shape cover, 34 mm deep

Rectangular cover: 14, 19 100 & 145 mm deep

Pyramid shape cover, 155 mm deep

» Finishes

Powder coating / Anodised
