Tamiz

» Opening possibilities

Side hung of 1, 2, 3 & 4 sashes

Bi-fold

Slider

» Closing Possibilities

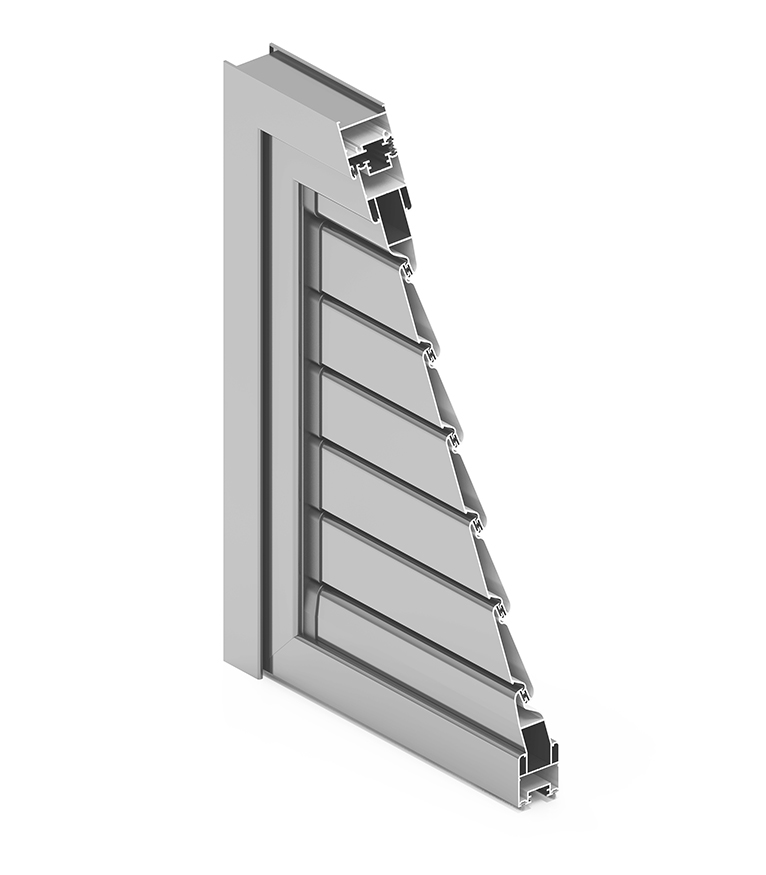

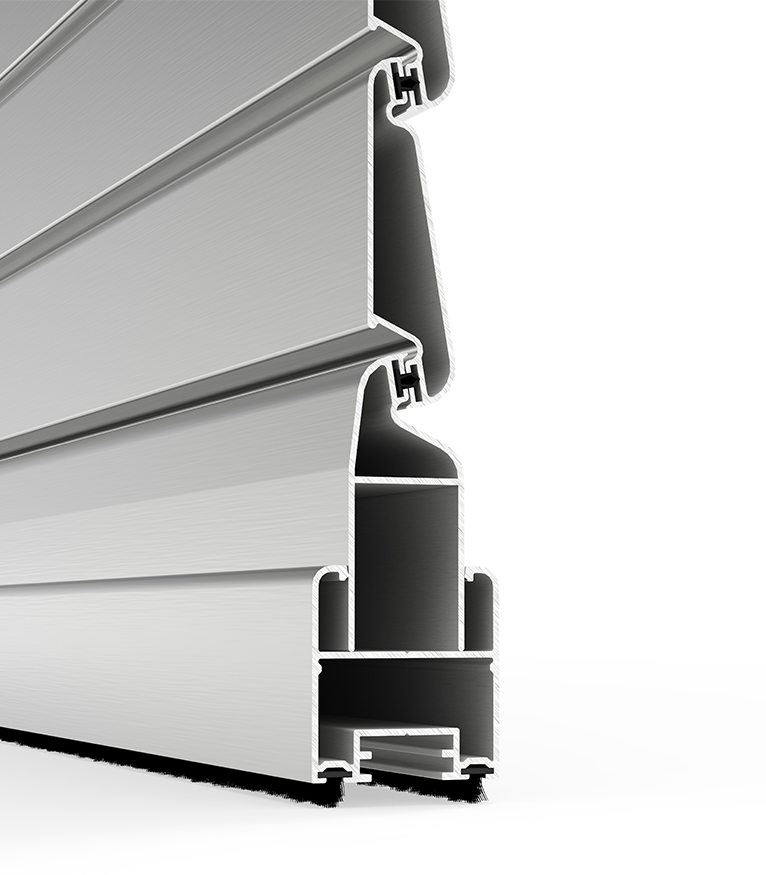

Fixed or adjustable louvres

Opaque closing (panel sandwich)

Glazed closing

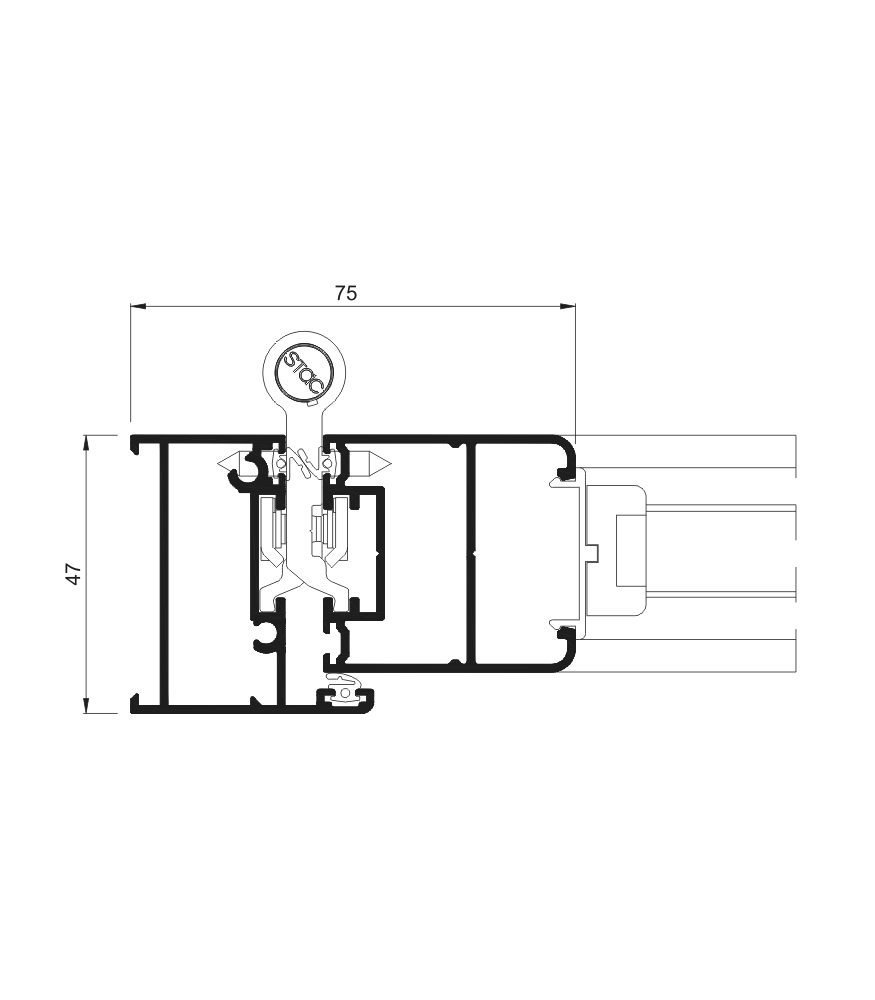

» Sections

Frame 47 mm

Sash 40 mm

» Profile thickness

Window 1.3 mm

Door 1.5 mm

» Maximum dimensions/sash

Side hung

Width (L) = 1200 mm

Height (H) = 2500 mm

Bi-fold

Width (L) = 700 mm

Height (H) = 2500 mm

Slider

Width (L) = 2000 mm

Height (H) = 3500 mm

Please consult regarding maximum weight
and dimensions for other opening types

» Maximum weight/sash

Bifold 50 kg

Side hung 65 kg

Slider 120 kg

» Finishes

Powder coating / Anodised
