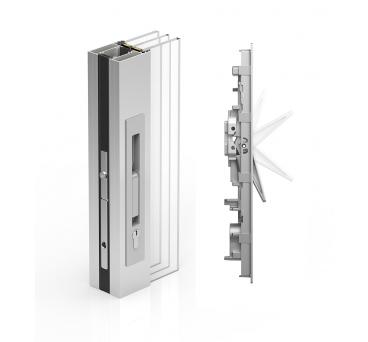

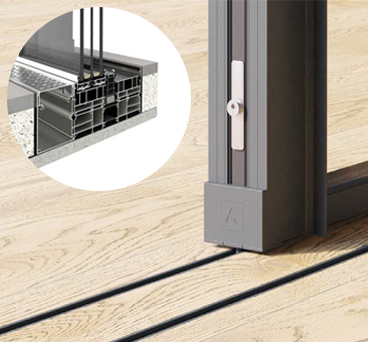

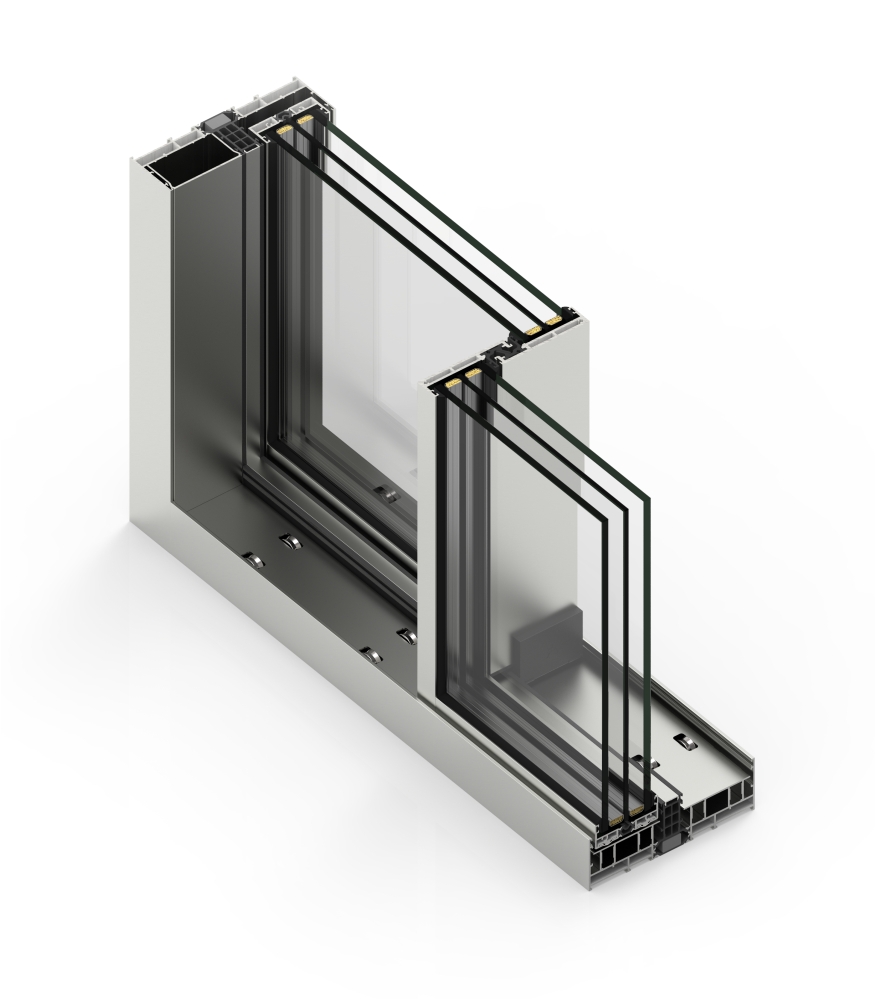

COR Vision Plus Sliding

All about the product

Description

Specifications

Available on backorder

All specifications

Description

» Minimalist sliding system specially suitable for large dimensions (up to 4,000 mm/sash of width or height)

Specifications

» Maximum glazing thickness

56 mm

» Opening possibilities

Sliding of 2, 4 or 6 sashes

Up to 4 rail configurations

1 sash + 1 fixed / 2 sashes + 1 fixed

Possibility of corner sash encounters at 90? without mullions

Pocket solution possibility 1,2,3, and 4 sashes

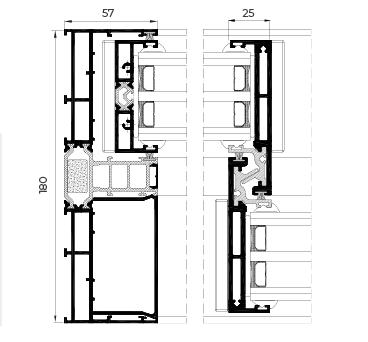

» Sections

Frame 180 mm – 278 mm 3 rails
Sash 69 mm

» Profile thickness

Door 2.0 mm

» Polyamide strip length

from 18 to 40 mm

» Maximum dimensions/sash

Width (L) = 4000 mm
Height (H) = 4000 mm

Glass surface <= 14 m? » Maximum weight/sash

400 kg Manual

700 kg Motorised

Please consult regarding maximum weight and dimensions for other opening types

» Finishes

Possibility of dual colour systems

Colour powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodised
