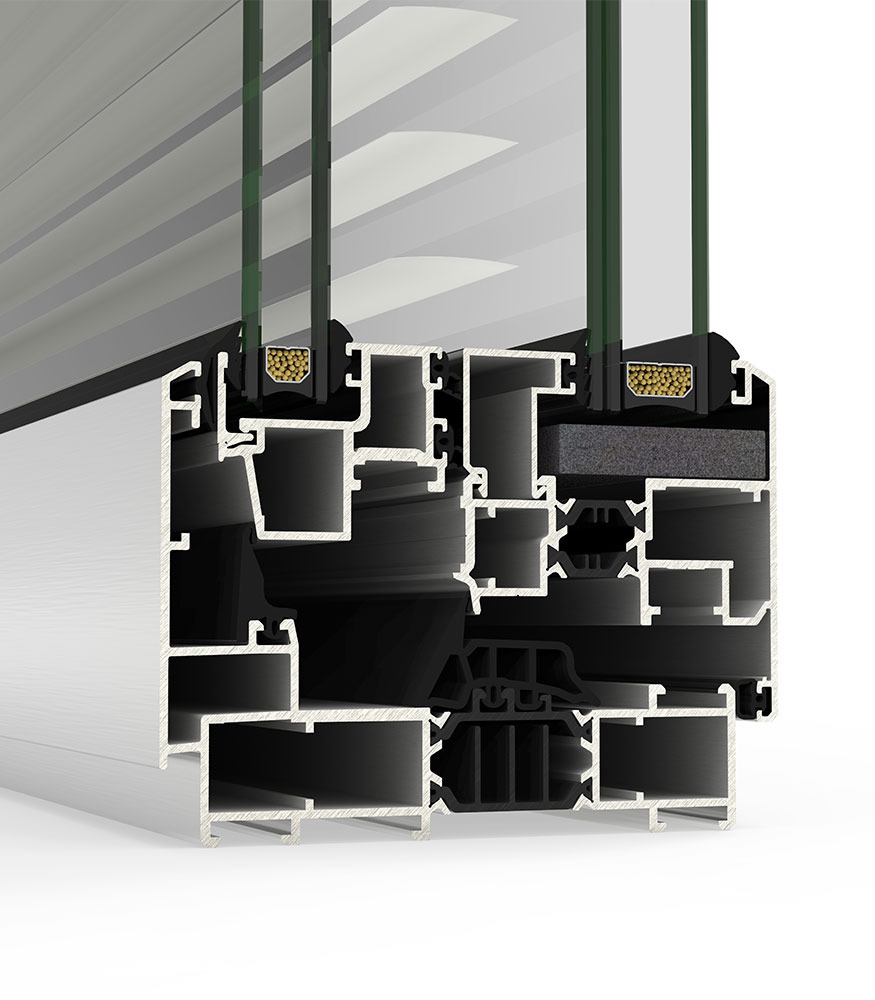

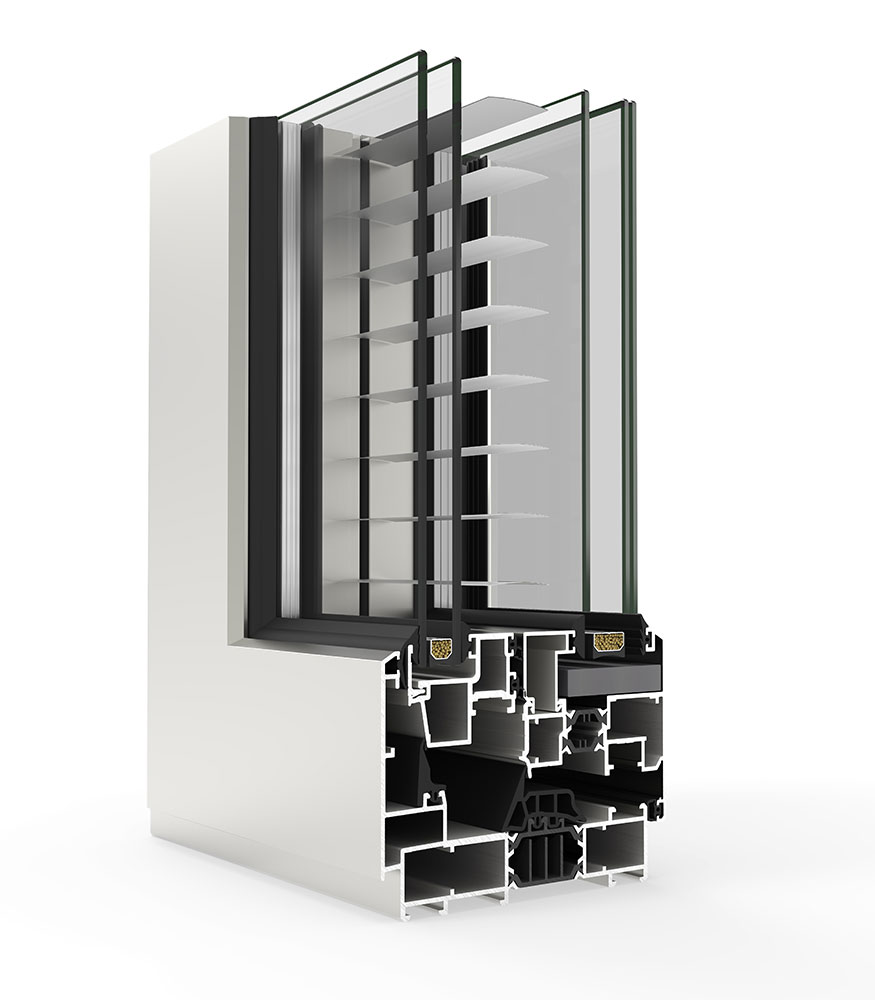

COR Urban C16

» Glazing
Internal sash: Max. 38 mm, Min. 13 mm
External sash: Max. 22 mm, Min. 11 mm

» Opening possibilities

Inward opening
Side hung
Tilt & turn

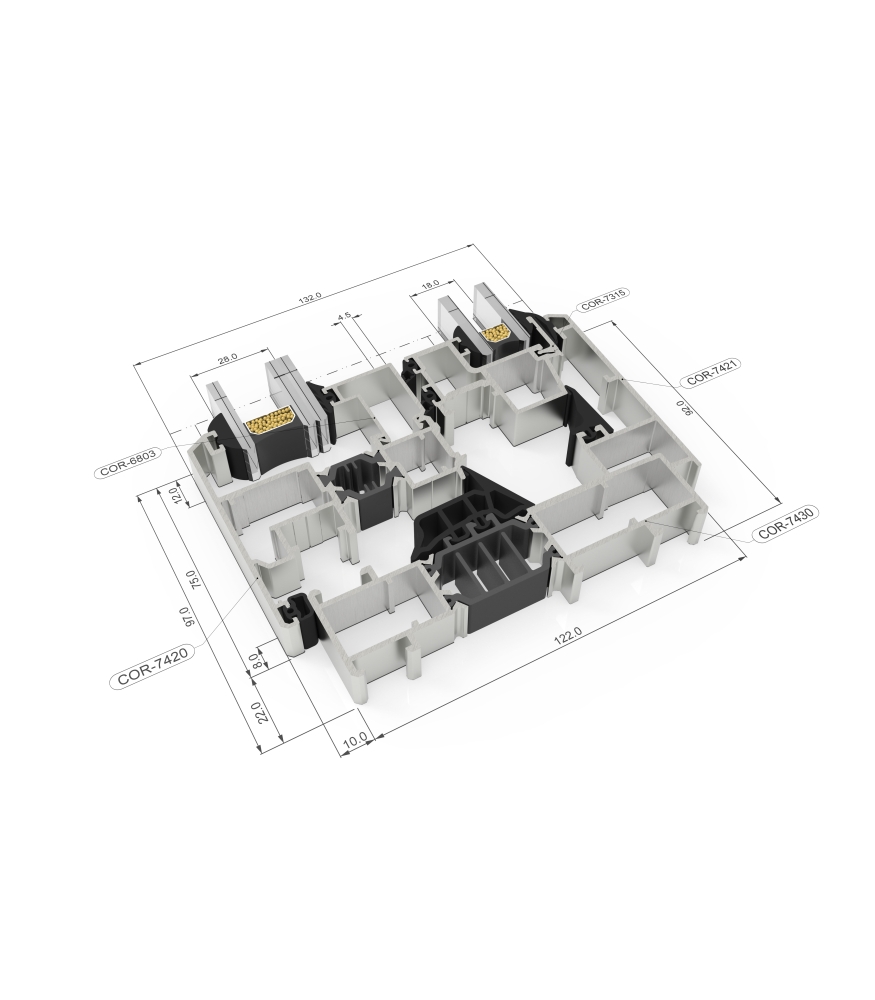

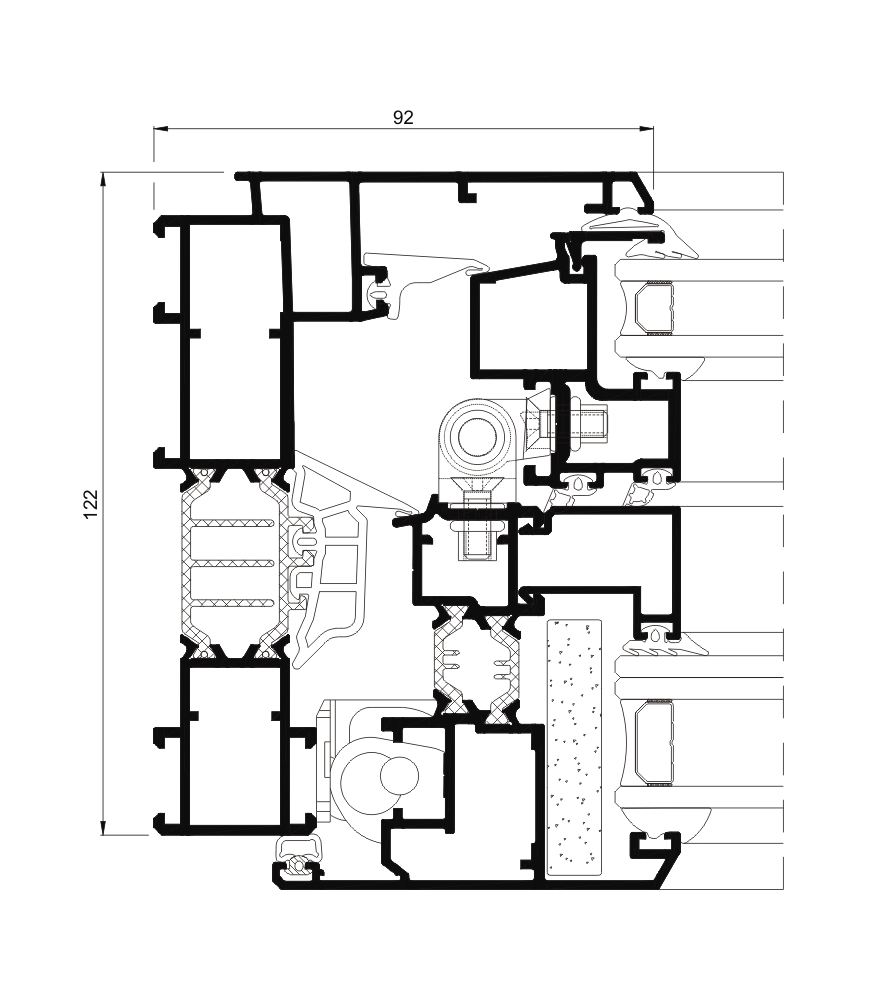

» Sightlines
Frame 122 mm
Sash 121 mm

» Profile thickness
Window 1.6 mm

» Polyamide strip length
Frame 35 mm
Sash 20 mm

» Maximum sash dimensions
Width (L) 1,200 mm
Height (H) 2,200 mm

» Maximum sash weight
150 kg

» Aesthetic possibilities
Sash: Chamfered / Bead: Chamfered

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
