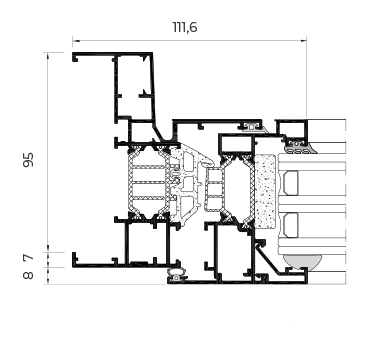

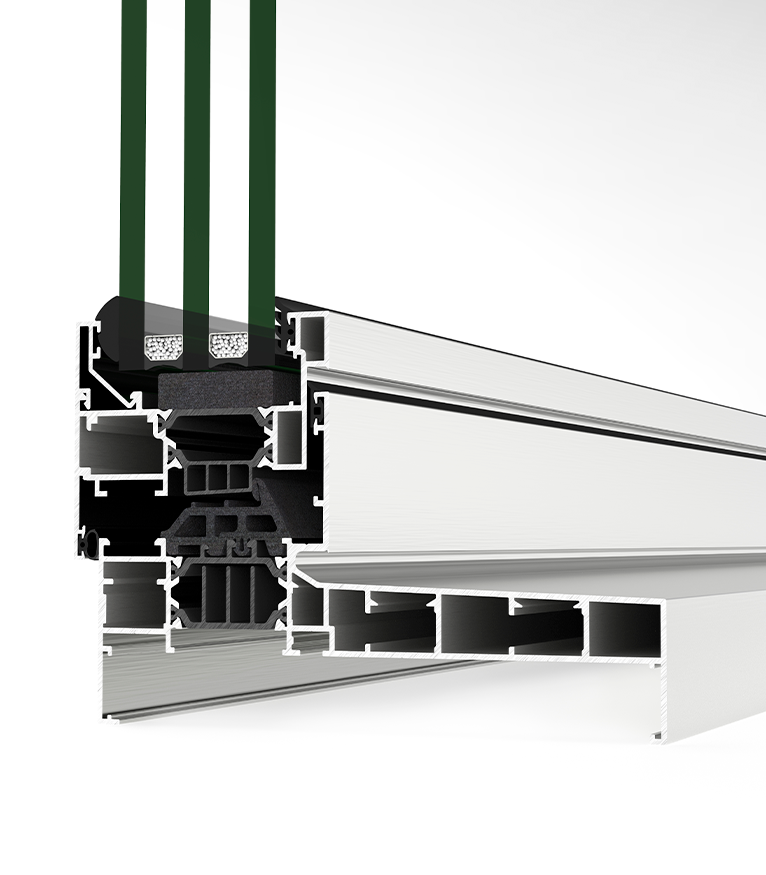

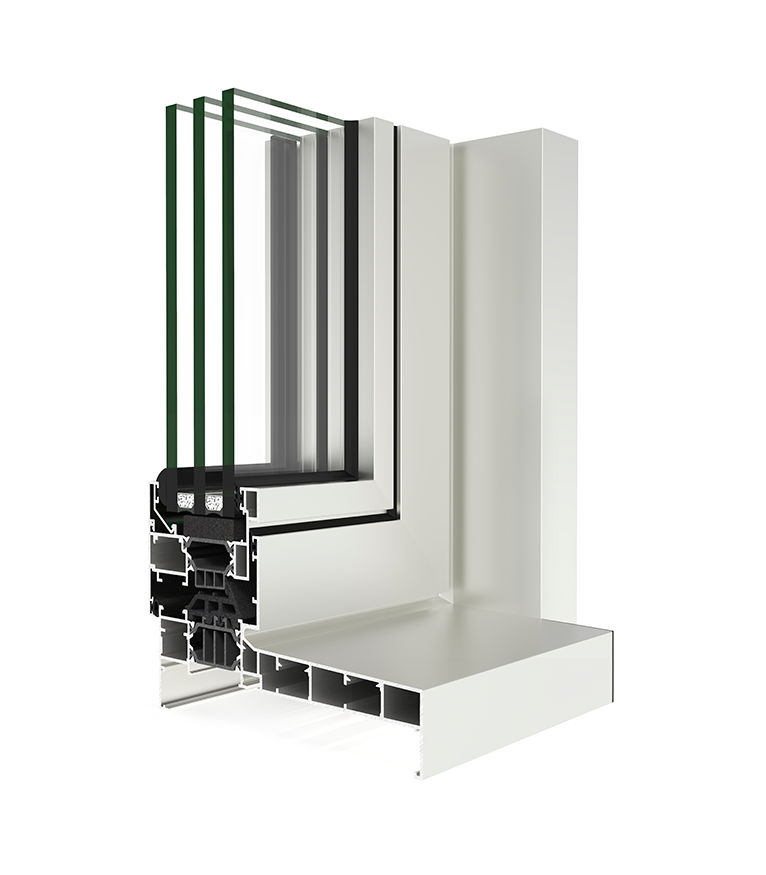

COR 70 OC Half – Hidden Sash

» Glazing
Max. 55 mm
Min. 15 mm

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Tilt only

» Sightlines
Frame 70 – 232 mm
Sash 78 mm

» Profile thickness
Window 1.5 mm

» Polyamide strip length
32 – 35 mm

» Maximum sash dimensions
Width (L) 1,000 mm
Height (H) 1,700 mm

» Maximum Sash Weight
160 kg

Consult maximum weight and dimensions according to typologies

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
