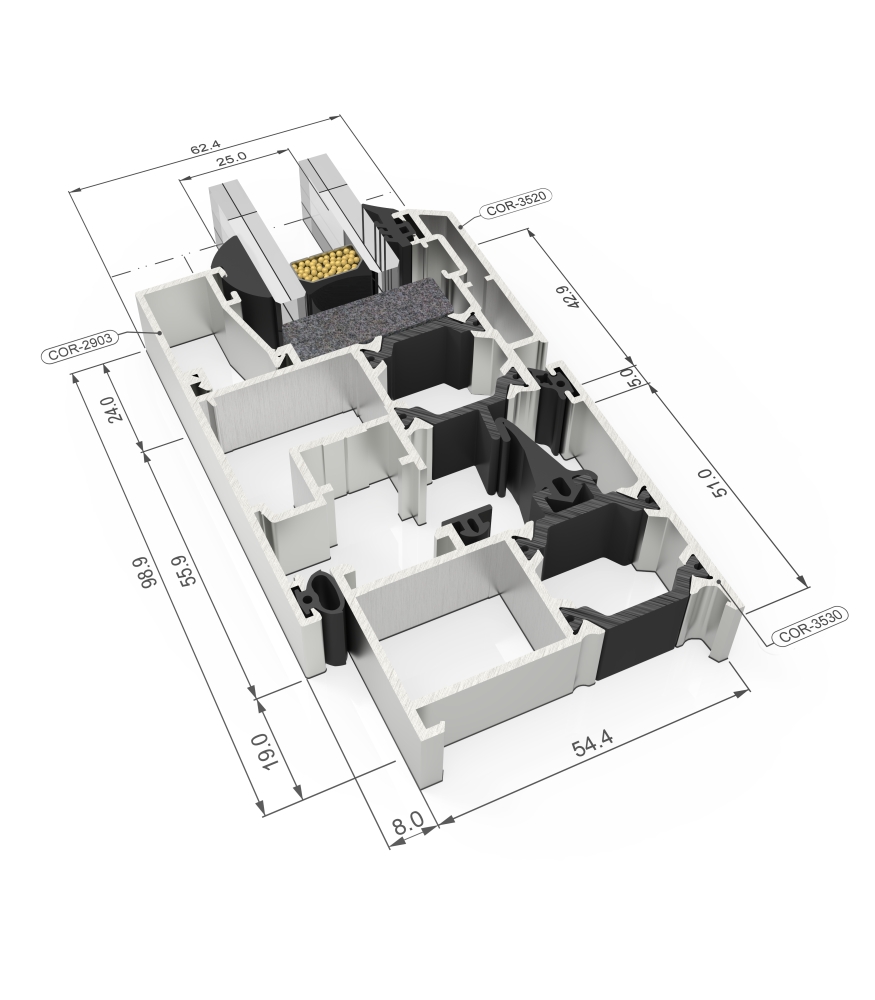

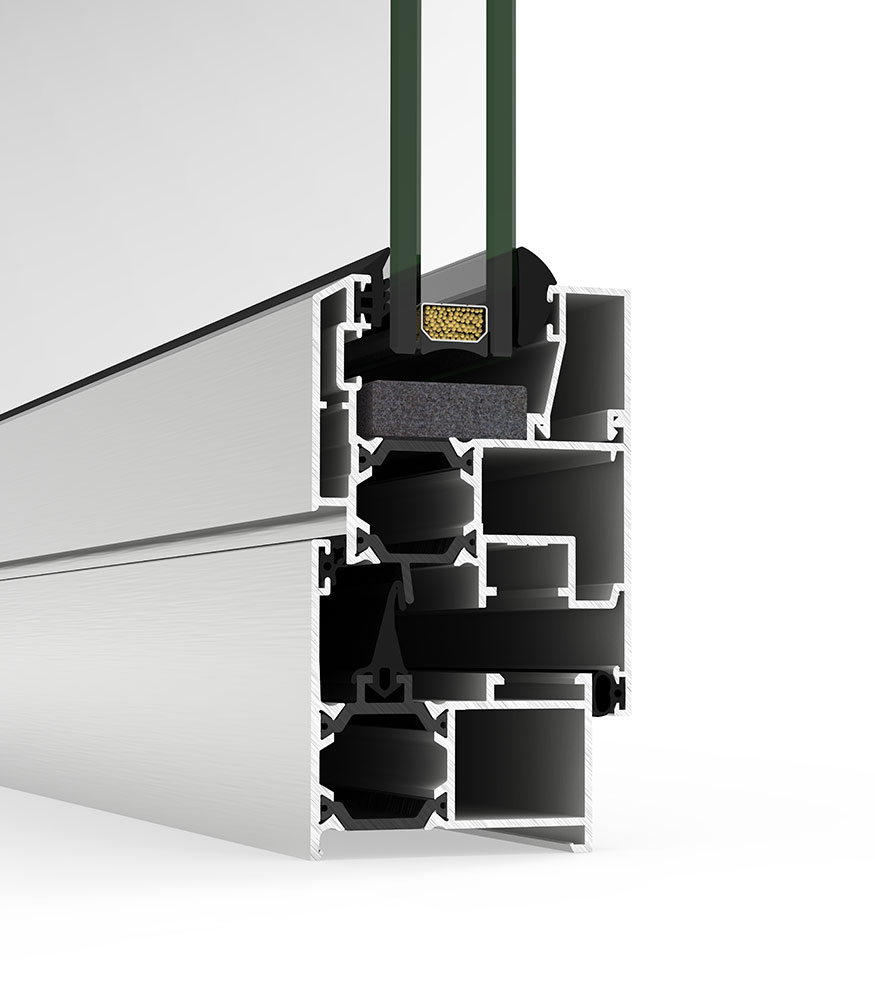

COR 3500 C16 ST

» Glazing
Max. 32 mm
Min. 27 mm

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Bi-fold
Tilt & parallel
Bottom hung

Outward opening
Side hung
Top hung

» Sightlines
Frame 54 mm
Sash 62 mm

» Profile thickness
Window 1.5 mm
Door 1.7 mm

» Polyamide strip length
24 mm

» Maximum sash dimensions
Width (L) 1,500 mm
Height (H) 2,600 mm

» Maximum sash weight
120 kg

» Aesthetic possibilities
Sash: Curved or chamfered / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
