Bi-fold Plus Door

All about the product

Description

Specifications

Available on backorder

All specifications

Description

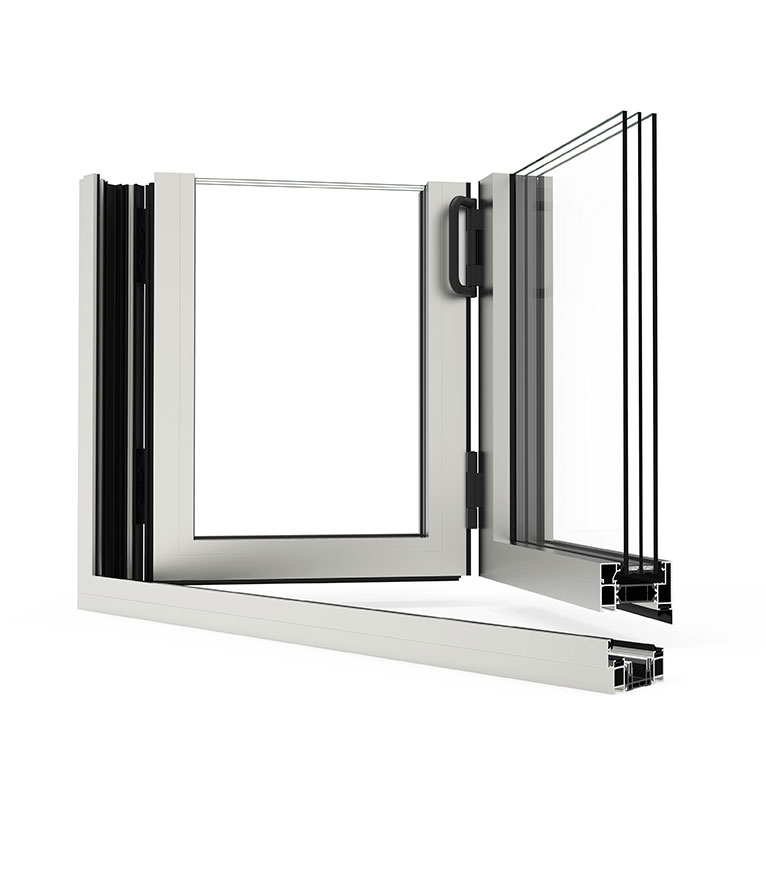

Separate environments and unify spaces with this bi-fold door system with an 80 mm deep frame. This evolution of the Bi-fold series offers an excellent thermal and acoustic performance, thanks to its 45 mm thermal bridge breakage and a glazing capacity up to 48 mm. Besides, it presents a slim central section of 110 mm which allows the maximisation of the glazed surface, filling the interior spaces with natural light.

Possibilities
» Accessibility
» Security hardware

Specifications

» Glazing
Max. 48 mm
Min. 25 mm

» Opening possibilities

Inward opening
Up to 14 sashes

Outward opening
Up to 14 sashes
90? corner sash without mullion

» Sightlines
Frame 73 mm
Sash 73 mm

» Profile thickness
1,8 mm

» Polyamide strip length
Frame 20 mm
Sash 30 mm

» Maximum sash dimensions
Width (L) 1200 mm
Height (H) 3000 mm

» Maximum sash weight
120 Kg

Consult maximum weight and dimensions according to typologies.

» Finished
Possibility of bicolor systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
