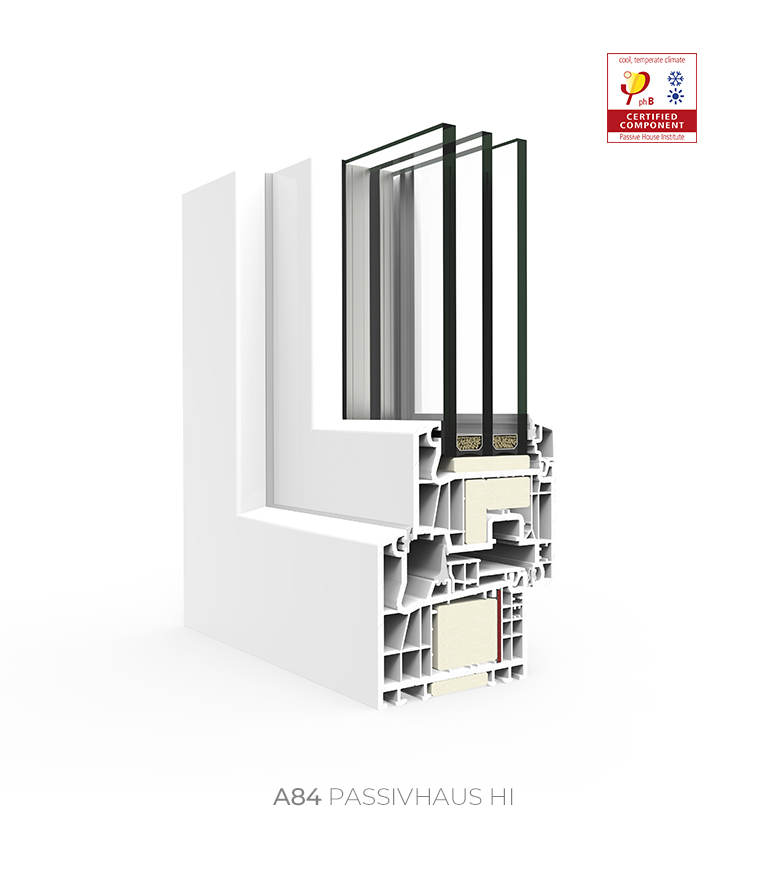

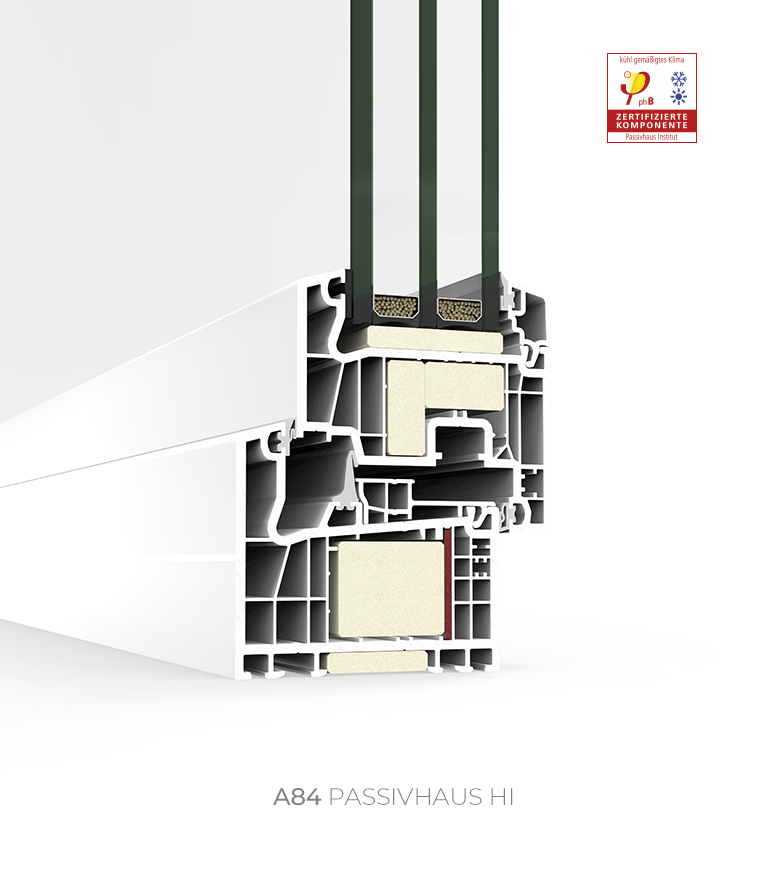

A 84 Passivhaus HI / 1.0

» Maximum glazing thickness

A84 Passivhaus HI – 56 mm

A84 Passivhaus 1.0 – 54 mm

» Opening possibilities

A84 Passivhaus HI

Inwards: side hung, turn & tilt, bottom hung.

A84 Passivhaus 1.0

Inwards: side hung, turn & tilt, tilt & parallel, bottom hung.

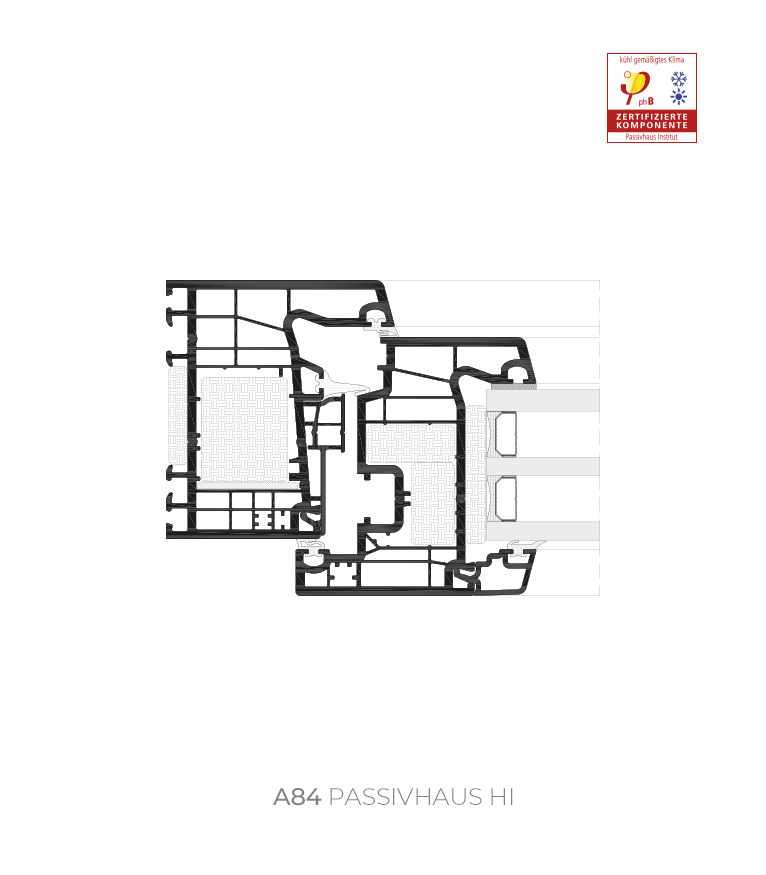

» Sections

Frame – 84 mm

Sash – 84 mm

» Maximum dimensions/sash

A84 Passivhaus HI

Window

Width (L) = 450-1300 mm

Height (H) = 450-2200 mm

Balcony

Width (L) = 450-1300 mm

Height (H) = 600-2200 mm

A84 Passivhaus 1.0

Window

Width (L) = 450-1400 mm

Height (H) = 450-2200 mm

Balcony

Width (L) = 650-1400 mm

Height (H) = 600-2400 mm

» Maximum weight/sash
