A 84 Hinged

All about the product
Description
Specifications
A 84 Hinged
A 84 Hinged
A 84 Hinged
A 84 Hinged

Available on backorder

Description

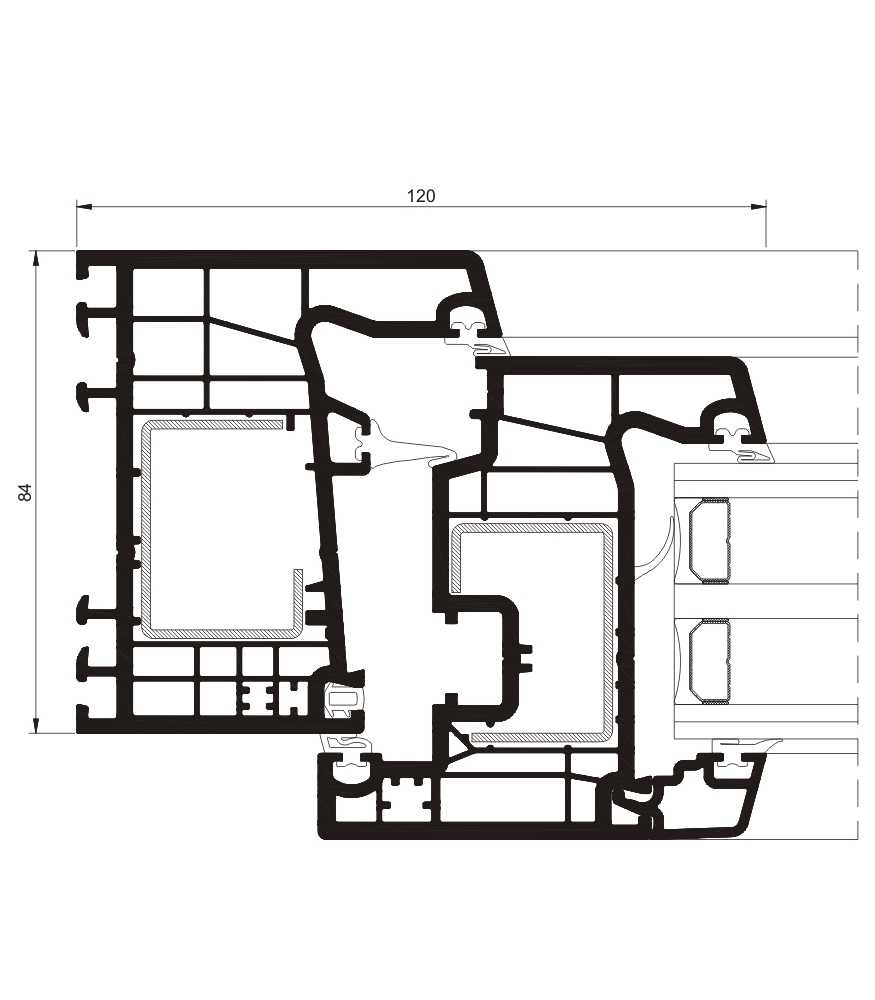

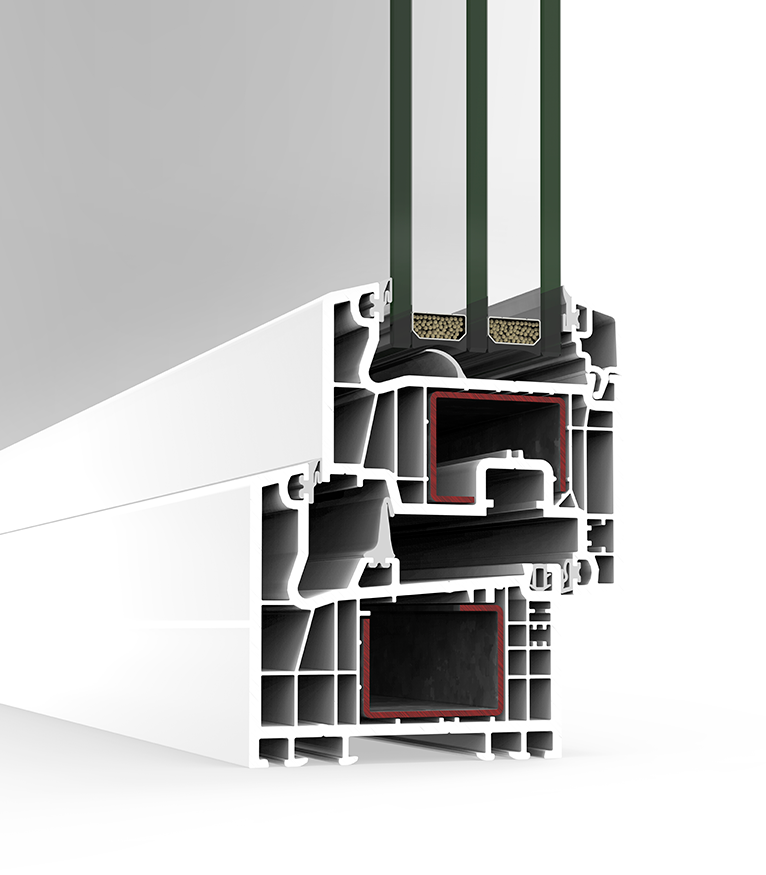

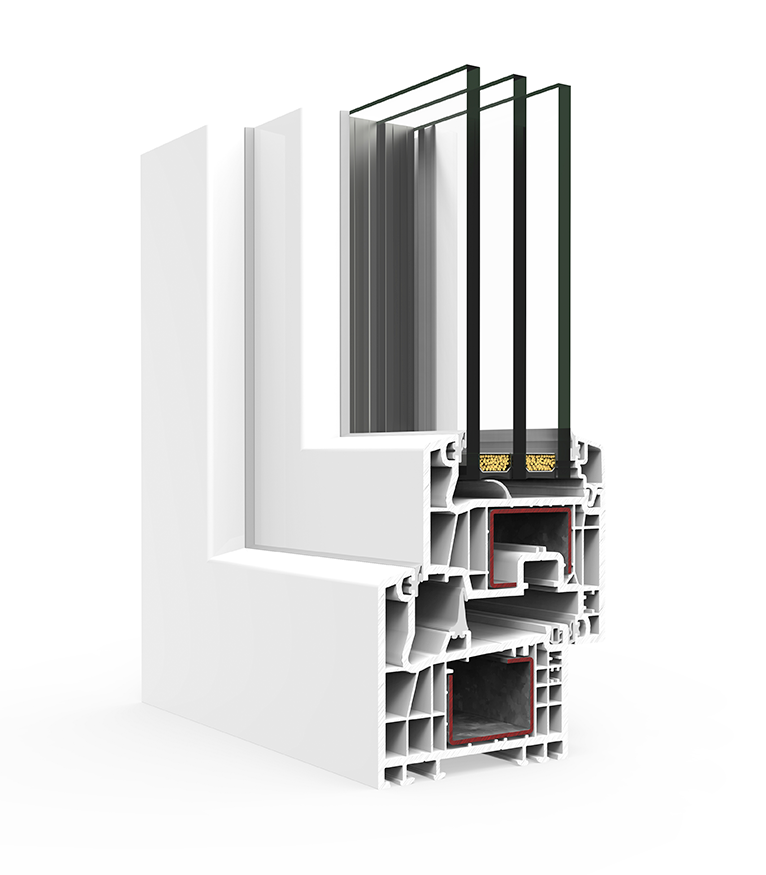

» Hinged window system of PVC with a frame depth of 84 mm


» 6 profile inner chambers in both the frame and the sash, allows for great energy efficiency


» Transmittance Uf from 1.16 W/m?K


» Central sash encounter of only 145 mm. Smaller seen section. Maximum luminosity





Specifications

» Maximum glazing thickness

54 mm

» Opening possibilities

Inwards:

Side hung, turn & tilt and bottom hung

Outwards:

Side-hung

» Sections

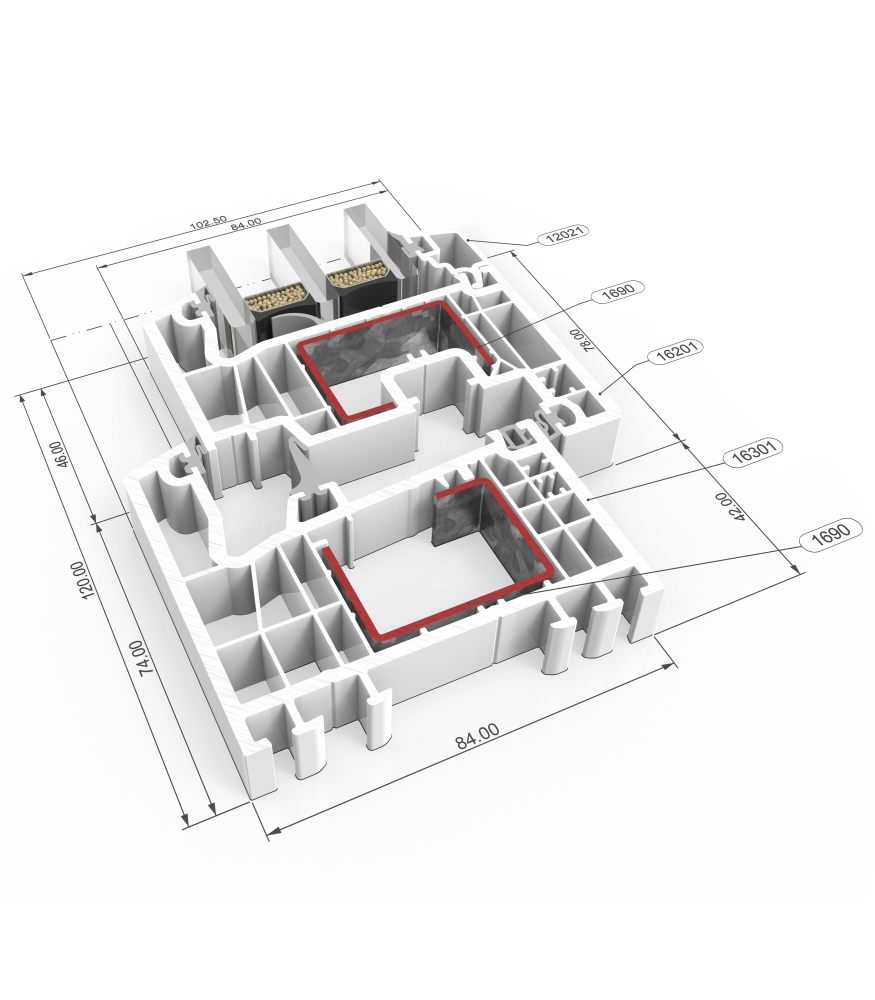

Frame – 84 mm / Sash – 84 mm

» Maximum dimensions/sash

Window
Width (L) = 450-1400 mm
Height (H) = 450-2450 mm
Balcony
Width (L) = 650-1400 mm
Height (H) = 600-2500 mm
Door
Width (L) = 700-1300 mm
Height (H) = 600-2500 mm

» Maximum weight/sash

Window 130 kg
Balcony 130 kg
Door 160 kg

Please consult regarding maximum weight and dimensions according to types.

» Finishes

Possibility of dual colour systems
White
Colour
Wood effect
